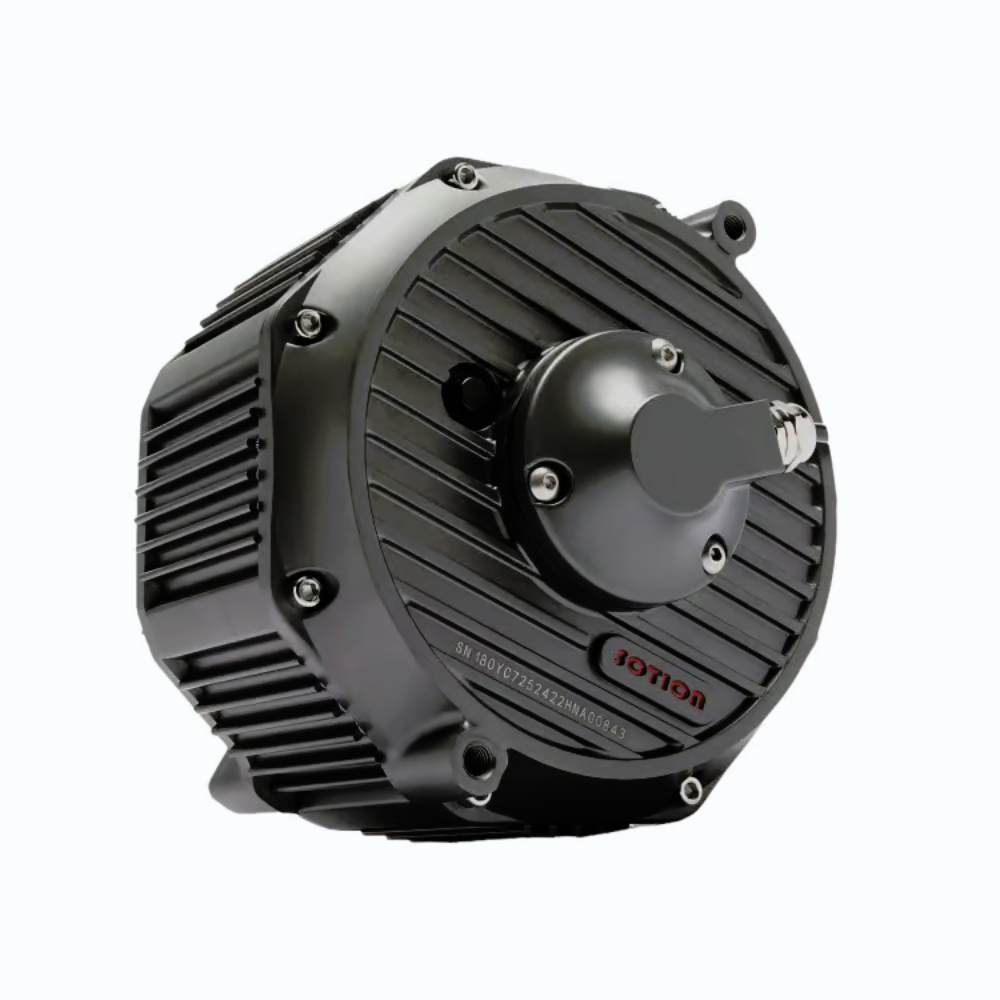

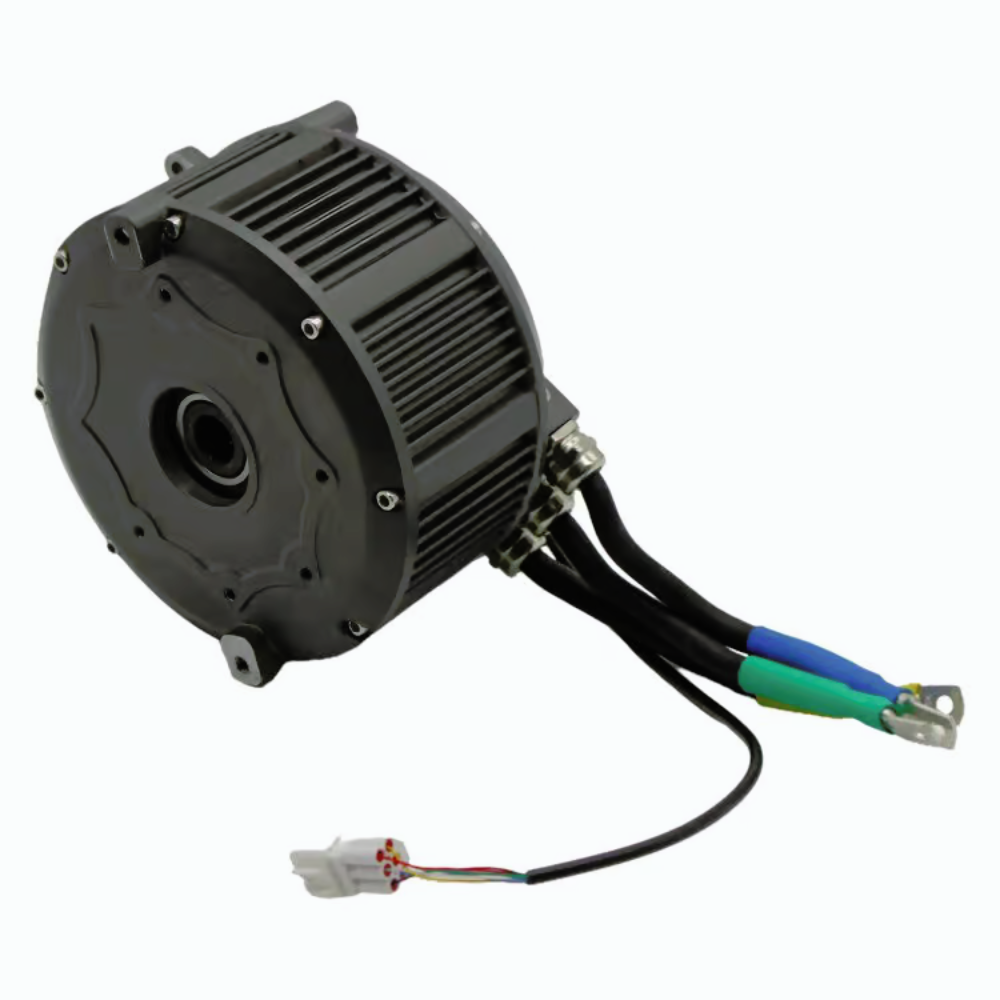

SOTION 24kW motor for TALARIA STING
SOTION 24kW motor for TALARIA STING
Regular price
€995,00 EUR
Regular price
Sale price
€995,00 EUR
Unit price
/
per
Taxes included.
Couldn't load pickup availability
This item is NOT approved for road use!!
Product Code: SOT-MOT-TAL
| Compatibility | Talaria Sting |
|---|---|
| Motor Type | Brushless IPM motor |
| Power | 12kW nominal and 24kW peak |
| Torque | 22Nm nominal and 60Nm peak |
| Maximum Phase | 650A Phase current |
| RPM | 5200RPM nominal voltage with a maximum of 10,000RPM |
| Sensor Position | Encoder |
| Temperature Sensor | NTC KTY83 |
| Motor Poles | 10 poles in pairs of 2 |
| Assembly | Aluminum body, aluminum rotors, neodymium magnets |
| Efficiency | 92% |
| Motor Dimensions | 180 x 145mm |
| Protection Rating | IP67 |
| Weight | 9.8kg |
